Description

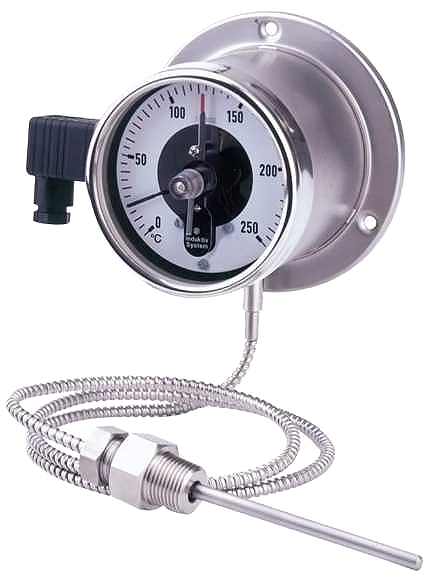

Non-Toxic Gas Filled Industrial Thermometers
| Dial Size | 80mm, 100mm & 160mm & 200mm Diameter |
|---|---|
| Measuring System | Non-Toxic Low Volume Nitrogen Gas Actuated |
| Accuracy | Class 1 BS EN 13190 |
| Ranges | Temperature Ranges between -200C to +800C and, or Equivalent F |
| Mounting | Surface Rear Flange, Panel Clamp Fixing, Panel Front Flange fixing |
| Case Material | Weatherproof IP67 AISI304/1.4301 or AISI316L/1.4404 |
| Window | Instrument Glass, Laminated Safety Glass or Plexiglass |
| Pointer | Balanced Black Aluminium (Micro Adjustable on request) |
| Case Filling | Glycerine or Silicon Oil on Request |
| Capillary, Flexible | 2mm Dia. AISI321 Stainless Steel or AISI316 Stainless steel |
| Capillary Armour, Flexible | 7mm Dia. AISI304 Stainless Steel or AISI316steel |
| Capillary Length | Upto 30 Metres |
| Stem/Bulb Diameter | 6mm, 8mm, 10mm, 12mm, 12.7mm & 16mm |
| Stem/Bulb length & Material | Standard Lenghts available from 63mm (2.5") to 1524mm (60") |
| Connection Material | AISI303/1.4305 or AISI316L/1.4404 Stainless Steel |
| Process Connection | 1/4",1/2", 3/4" BSP/NPT fixed or adjustable sliding union (others on request) |
| Electrical Contact Switches | Single, or Double electric contact switches for Alarm and or Trip available on request |
PLEASE SPECIFY:
- Mounting: Surface Rear Flange, Panel Clamp or Panel Front Flange
- Dial Size: 80mm, 100mm 160mm or 200mm diameter
- Range: Between -200˚C to 800˚C and, or Equivalent ˚F
- Case Material: AISI 304, or AISI316 Stainless Steel
- Capillary Length: Up to 30 metres
- Capillary: Material and Type Plain, or Armoured
- Stem/Bulb: Material, Diameter and Length
- Process Connection: Material and Size
- Options: Thermowell, Electrical Contact Switch, Maximum/Minimum Pointer, other
Due to the many different models available, please ask our Technical Sales for a quotation. For further information on these instruments please contact scientific@zeal.co.uk. They will be manufactured to your specifications.
