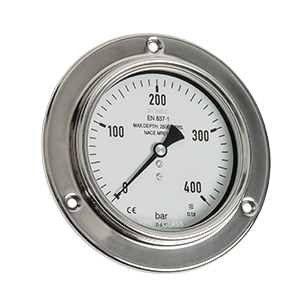

Subsea Pressure Gauges

ZEAL offers different types of Subsea gauges for pressure measurement from intermediate to extreme sea depths to 6000 metres with pressure ranges from 0,6 to 1600Bar/8.7 to 23206Psi

► Available in ø63, ø100 and ø160 mm dial sizes
► Compensated and none compensated models
► 316 stainless steel cases machined from solid bar stock
► Armoured glass windows 15 to 40mm thick (dependant upon model)
► White-on-black and black-on-white dial markings possible

If you need pressure (or temperature) reliability in deep places, Zeal has the right subsea instrument for you.
Please contact our Sales office: scientific@zeal.co.uk

Please note, for all export orders there is a minimum order value of £135.00 excl shipping charge.

Description

Subsea Pressure Gauges

Due to the many different models available please ask our Technical Sales for a quotation, or contact your local distributor for further information on these instruments which will be manufactured to your specifications.
Below is an idea of what we can offer.

Models	Maximum depth	Gauge size	Pressure ranges
PBX-SS063XA	1200 metres	63 mm	0.6 upto 1600Bar/8.7 to 23206 Psi
PBX-SS100XA	900 metres	100 mm	0.6 upto 1600 Bar to 23206Psi
PBX-SS160XA	450 metres	160 mm	0.6 upto 60 Bar
PBX-SS100XA-ED	4000 metres	100mm	0.6 upto 1600 Bar to 23206Psi
PBX-SS140XA-UD	6000 metres	140mm	0.6 upto 1600 Bar to 23206Psi

Please contact our sales office for further information: scientific@zeal.co.uk
