Description
Tel-Tru Bimetal Industrial Dial Thermometers
TYPES AVAILABLE
Mounting styles: Adjustable Angle, Vertical and Back connected.
► Sizes:76mm (3”), 100mm (4”) and 125mm (5”).
► Models:
Adjustable Angle AA375R 76mmØ, AA475R 100mmØ, AA575R 125mmØ.
Vertical Bottom BC350R 76mmØ, BC450R 100mmØ, BC550R 125mmØ.

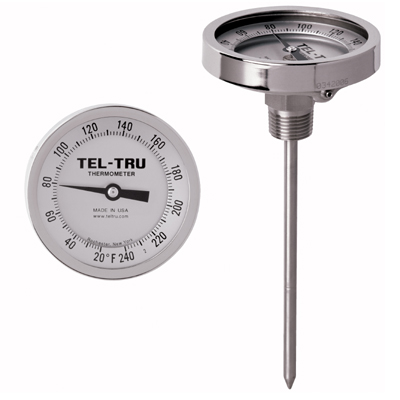

Back Co-axial GT300R 76mmØ, GT400R 100mmØ, GT500R 125mmØ.
► Ranges available in standard spans from Minus 75°C/-100°F to Plus 550°C/+1000°F.
► 304 Stainless steel external wetted parts or 316, welded construction. Corrosion resistant.
► True Anti-parallax dials.
► Standard stem diameter 6.35mm (1/4”). 6mm, 8mm and 9.52mm also available.
► Stem lengths 63mm (2.5”),102mm (4”), 152mm (6”), 228mm (9”),
304mm (12”), 380mm (15”), 457mm (18”), 610mm (24”) and 914mm (36”).
Non standard lengths available up to 1828mm (72”).
► Standard fixed connection 1/2” NPT male. 1/2” BSP male, adjustable union connections,
and other sizes available.
► Thermowells and other options upon request.
Various options
3″, 4″, and 5″ Adjustable Angle Industrial Thermometers (Bimetal): Heavy duty design, with versatile case and stem that can be adjusted to almost any angle for easy viewing. Preferred by the process, offshore, power, pharmaceutical and chemical industries.
3″, 4″, and 5″ Back Connected Large Industrial Thermometers (Bimetal): A rugged 90° back angle, rear threaded connection design. Commonly used in industrial, pulp and paper, food and beverage processing, HVAC, and OEM applications.
1-3/4″ and 2″ Back Connected Small Industrial Thermometers (Bimetal): A smaller size, heavy duty, rear mounted unit commonly used in OEM equipment and light industrial applications.
3″, 4″, and 5″ Bottom Connected Industrial Thermometers (Bimetal): A sturdy straight form design commonly used for industrial applications and OEM equipment.
5″ Glow Dial and Reflective Bimetal Thermometers: Adjustable Angle or Back Connect — 5″ Glow dial with Reflective Pointer and Clips OR 5″ Aluminium dial with Reflective Pointer and Clips (consult factory). Typically used in process industries where low light conditions and access are limited. Use when visibility, easy access, and safety matter!
